Medical Packaging
Application

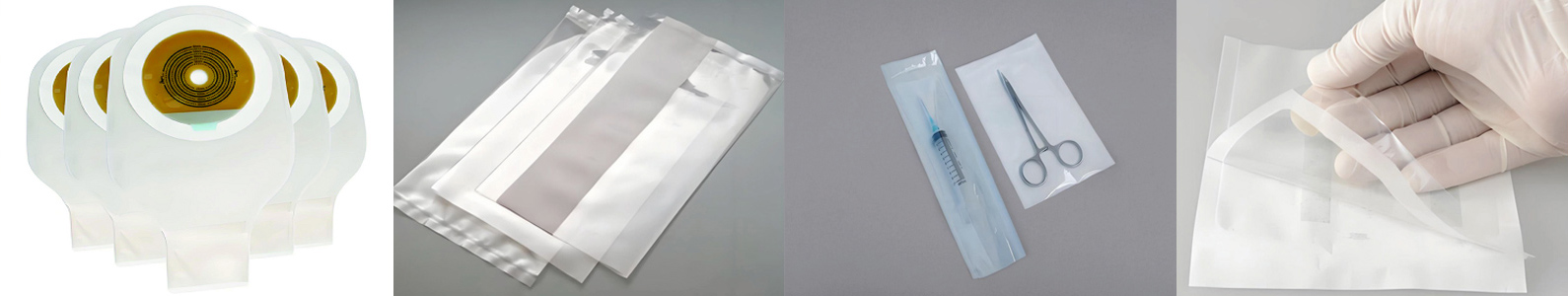

Ostomy Bags (Available in Skin - colored, Tea - colored, and Transparent )
Sterilization Bags



Performance Characteristics
1.Ostomy bags: They have high flexibility and high barrier properties. The exterior layer has a skin-friendly feel.
2.The equipment is of high precision. The structures of materials in each layer are flat and uniform. As a result, the peel strength is uniform, the package breakage rate is low, and the phenomenon of drawing filaments is unlikely to occur.



Performance
1.Excellent barrier performance
2.Superior slip performance
3.Good transparency and glossiness
4. High tensile strength
5. Excellent flatness
Corona treatment: Single-Sided Treatment
Thickness Range: 40-380μm

Technical Parameter
Performance Indicator
 Implementation Standard
 Unit Barrier Properties
Thickness Tolerance GB/T 6672-2001
ISO 4593
DIN 53370
 μm 0 — ±2
Width Tolerance GB/T 6673-2001
ISO 4592
 mm 0 — +2
Coefficient Of Friction GB/T 10006-2021
ISO 8295
 — Customized
Luminous Transmittance GB/T 2410-2008
ISO 14782
ASTM D1003-21
 % 90-95
Haze GB/T 2410-2008
ISO 14782
ASTM D1003-21
 % 3-15
Tensile Strength MD GB/T 1040.3-2006
ISO 527-3
 N/15mm² ≥15
TD ≥10
Elongation MD GB/T 1040.3-2006
ISO 527-3
 % ≥300
TD ≥300
Water Vapor Transmission Rate GB/T 26253-2010(38℃/90%RH)
ISO 15106-2
 g/(㎡·24h) 1-15
Oxygen Transmission Rate GB/T 1038.1-2022(At23℃,Dry,1Atm)
ISO 15105-1
DIN 53380-1
 cm³/(㎡·24h·0.1Mpa) 5-150
Heat-seal Strength QB/T 2358-1998 N/15mm ≥5
Peel Strength GB/T 8808-1988 N/15mm ≥3
IMPORTANT NOTE: The above data has been obtained from our laboratory and is provided for reference only. It must not be used as a basis for operation under specific environments or conditions. Users are kindly requested to test each performance index independently to determine whether the product is suitable or not.During transportation, loading, and unloading, mechanical collisions should be avoided to prevent damage to the surface or end face. Additionally, avoid exposure to sunlight and rain, and store the product in a clean, cool, and dry place.
Product Structure
Product Range
 		Structure Max Width(mm)
 		Thickness Range(um)
 		Barrier Properties
Medium Barrier PA/ PE 2820 40-380 OTR≤150cm³/(㎡·24h·0.1Mpa)
WVTR≤15g/(㎡·24h)
PA/ PP
PE/PA/PE
PP/PA/PP
High Barrier PA/EVOH/PE OTR≤5cm³/(㎡·24h·0.1Mpa)
WVTR≤15g/(㎡·24h)
PA/EVOH/PP
PE/ EVOH/ PE
PP/EVOH/PP
PE/PA/EVOH/PA/PE
PP/PA/EVOH/PA/PP
PP/PA/EVOH/PA/PE
