Cast Film (Medium-Barrier)
Application

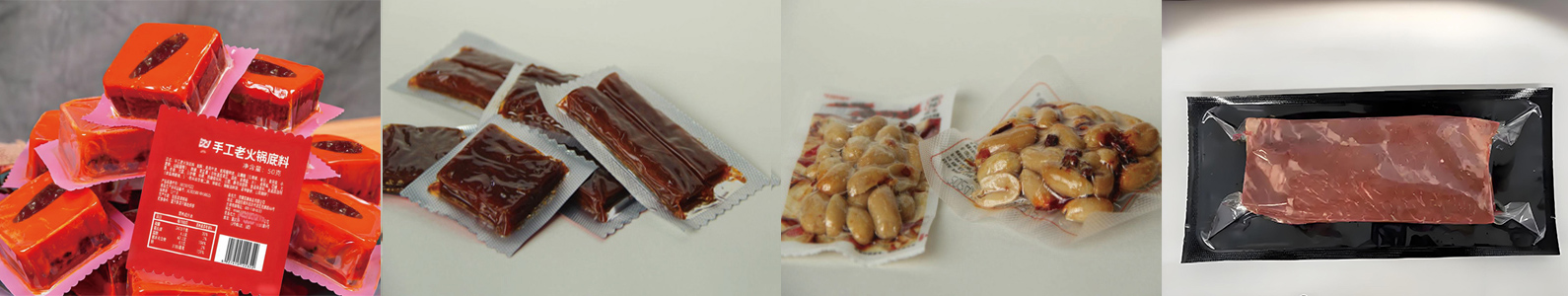

Hot Pot Seasonings, Spicy Strips, Peanuts, Frozen Steak and More

Performance Characteristics

Excellent flatnessHas good thermal mouldability and minimises leakage when transported and handled.

High Clarity: It creates a three-dimensional (3D) effect and enables a full view of the product.
Multilayer Co - extrusion: It provides high tensile strength and high puncture resistance.


Performance
1.Excellent barrier performance
2.Superior slip performance
3.Good transparency and glossiness
4.High tensile strength
5.Excellent flatness
Corona Treatment: Single-sided Treatment / Double-sided Treatment
Thickness Range: 40-380μm

Technical Parameter
Performance Indicator
Implementation Standard
Unit Reference Value
Thickness Tolerance GB/T 6672-2001
ISO 4593
DIN 53370
μm 0 — ±2
Width Tolerance GB/T 6673-2001
ISO 4592
mm 0 — +2
Coefficient Of Friction GB/T 10006-2021
ISO 8295
Customized
Luminous Transmittance GB/T 2410-2008
ISO 14782
ASTM D1003-21
% 90-95
Haze GB/T 2410-2008
ISO 14782
ASTM D1003-21
% 3-15
Tensile Strength MD GB/T 1040.3-2006
ISO 527-3
N/15mm² ≥15
TD ≥10
Elongation MD GB/T 1040.3-2006
ISO 527-3
% ≥300
TD ≥300
Water Vapor Transmission Rate GB/T 26253-2010(38℃/90%RH)
ISO 15106-2
g/(㎡·24h) 1-15
Oxygen Transmission Rate GB/T 1038.1-2022(At23℃,Dry,1Atm)
ISO 15105-1
DIN 53380-1
cm³/(㎡·24h·0.1Mpa) 5-150
Heat-Seal Strength QB/T 2358-1998 N/15mm ≥5
Peel Strength GB/T 8808-1988 N/15mm ≥3
IMPORTANT NOTE: The above data has been obtained from our laboratory and is provided for reference only. It must not be used as a basis for operation under specific environments or conditions. Users are kindly requested to test each performance index independently to determine whether the product is suitable or not.During transportation, loading, and unloading, mechanical collisions should be avoided to prevent damage to the surface or end face. Additionally, avoid exposure to sunlight and rain, and store the product in a clean, cool, and dry place.
Product Structure
Product Range Structure Max Width(mm) Thickness Range(um) Barrier Properties
Medium Barrier PA/PE 2820 40-380

OTR≤150cm³/(㎡·24h·0.1Mpa)

WVTR≤15g/(㎡·24h)

PA/PP
PE/PA/PE
PP/PA/PP
High Barrier PA/EVOH/PE OTR≤5cm³/(㎡·24h·0.1Mpa)
WVTR≤15g/(㎡·24h)
PA/EVOH/PP
PE/EVOH/PE
PP/EVOH/PP
PE/PA/EVOH/PA/PE
PP/PA/EVOH/PA/PP
PP/PAEVOH/PA/PE
